opk E-Space
OPK E-Space is an automated sliding door system for interior fittings. The innovative magnetic drive opens up completely new application possibilities with OPK E-Space. Barrier-free access with maximum convenience is created. It can be operated as a single or synchro system.
0.0 Yuan 0.0 Yuan
Door width:
≥730mm
Door thickness:
W≥30mm; G 8-10mm
Door weight:
100kg
Height adjustment:
±3mm
Damping:
both sides
产品描述
[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[产品参数, 参数]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]

USP



OPK E-Space is an automated sliding door system for interior fittings.
The innovative magnetic drive opens up completely new application possibilities with OPK E-Space. Barrier-free access with maximum convenience is created. It can be operated as a single or synchro system. The magnetic drive moves in slim aluminium profiles with ball-bearing plastic rollers, which guarantee smooth, quiet and practically maintenance-free run.
The entire assembly is simple, quick and immediately ready for operation. A plug-in delivery and commissioning by plug & play are characteristic of this.
The doors can already be controlled via app (iOS + Android) or touch as standard. The app offers the possibility of user-friendly and individual settings. The system also offers multifunctional connectivity options. Certification by TÜV Rheinland and SGS guarantee maximum security. This includes, among other things, that the doors can be moved without problems despite a power failure, that there is no risk of being crushed due to low energy operation and that the magnetic field used is harmless to health.

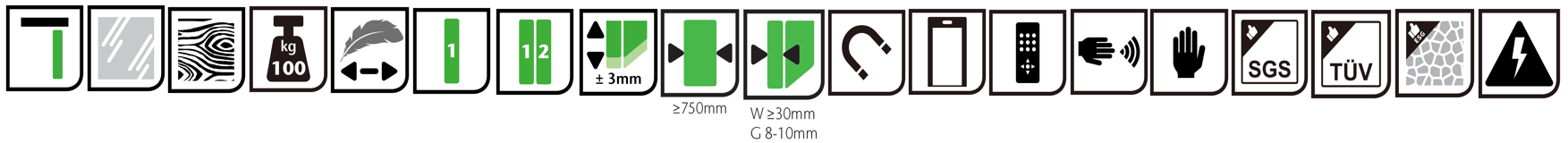

Icons



The advantages at a glance



• A universal door connection for wood, glass, frame doors etc.
• Simple, quick installation, height adjustment +/- 3 mm
• Door leaf weight up to 100 kg
• Door widths from 730 mm
• As a single system, track lengths from 1.400 to 3.400 mm
• As a synchro system, track lengths from 2.800 to 6.800 mm
• Facing of the running track possible

• Ball bearing floor guide

• Elegant due to the small distance between the door and the track (small gap)

• All-glass doors 8 - 10 mm

• Functional glass clamp and floor guide



Video



Uses



• Office, kitchen, bathroom
• Living, eating, bedroom, passage

• Hotel, gastronomy

• Barrier-free rooms





Certificates



• Tested according to SGS-CSTC EN 15706:2013

• Tested by TÜV Rheinland
